Ace and Versa Floats

Ace and Versa Dock Floats

Manufactured under ISO 9001 standards for commercial and residential dock builders.

THE INDUSTRY’S FIRST TO OFFER A 15 YEAR WARRANTY

Our Ace, Versa and Boat Lift Dock Floats continue to provide features and benefits that to set them apart from other floating dock products. You can be assured that our Dock Floats meet exacting specifications and quality standards with a warranty that is unmatched in the industry.

ACE, Versa and Boatlift Dock Floats continue to provide features and benefits that set them apart from other floating dock products. That’s why professional dock builders choose Seaco Marine Dock Systems.

Over seventy five different shapes and sizes of dock floats for commercial and residential applications with buoyancy ratings from 230 lbs to 4,628 lbs.

Buoyancy ratings have been tank-tested to be within +0%/-5%
of published ratings.

Ace Floats are available in 77 different sizes and buoyancy ratings.

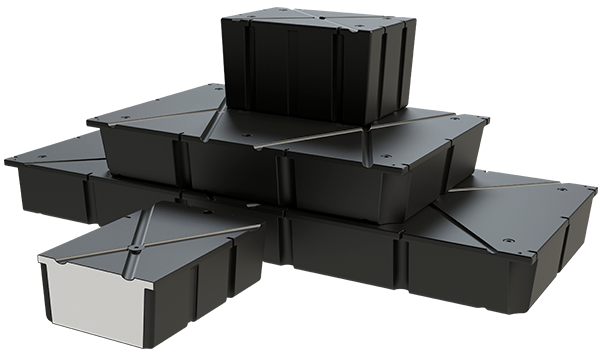

Ace Floats

Ace Floats are available in 75 different sizes and buoyancy ratings.

Seaco Marine uses ACE Floats as the foundation for it’s dock systems. ACE Floats are a rotationally molded foam filled, one-piece seamless plastic shell design to create an exterior that prevents leakage, structural failure and joint separation. The float wall is made of tough virgin polyethylene with ultra violet inhibitors to prevent damage from the sun, debris, oil, gas, marine organisms, salt water & fresh water. A minimum wall thickness of .125 offers a stronger more durable float. The top of the shell is flat with molded-in mounting slots for easy attachment to any dock frame.

Versa Flaots

Versa Floats

Ace Floats are available in 2 different sizes and buoyancy ratings.

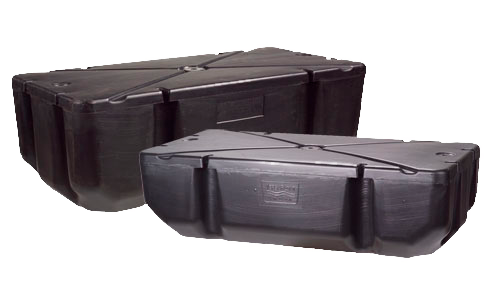

Versa Floats are a blow-molded, foam filled, one-piece seamless plastic shell design featuring eight mounting slots for dock attachment. The top, bottom and sidewalls of the float are ribbed to add strength at each connection point.

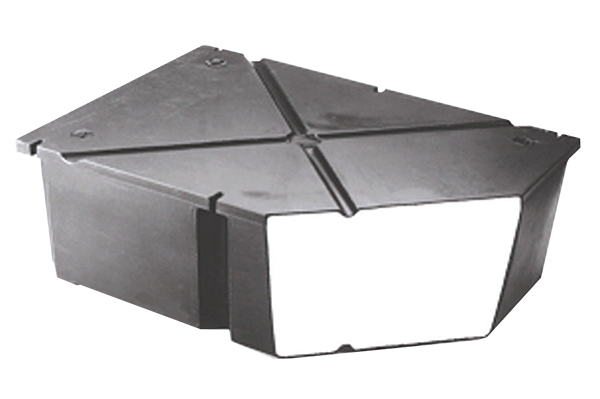

Cross section of Ace Float
Cross Section

The interior of ACE and Versa Floats are filled with CFC free expanded polystyrene (EPS) foam, is steam pressured to ensure a solid void-free, tight fit for the best buoyancy and to ensure floatation if the outside shell becomes punctured in any way.

ACE floats meet and exceed the following performance tests:
• ASTM D1998-06 Falling Dart Impact Test
• 7-Day Hunt Water Absorption Test
• Encasement Wall Thickness Standard
• Tank Tested Buoyancy Ratings
• U.S. Army Corps of Engineers Regulation 33CFR Part 327.30

ACE FLOATSLBSSIZE IN PRINTBUOYANCY
FF1248-202612 x 48 x 20359
FF1848-365318 x 48 x 36966
FF2072-083320 x 72 x 08360
FF2072-103820 x 72 x 10450
FF2096-104920 x 96 x 10592
FF2323-24RND*2223 x 24330
FF2436-08LF2124 x 36 x 08194
FF2436-082024 x 36 x 08211
FF2436-122624 x 36 x 12318
FF2436-162924 x 36 x 16436
FF2436-203124 x 36 x 20540
FFBM2448-123024 x 48 x 12409
FFBM2448-163524 x 48 x 16546
FF2448-082624 x 48 x 08288
FF2448-123124 x 48 x 12433
FF2448-163724 x 48 x 16581
FF2448-204224 x 48 x 20729
FF2448-244924 x 48 x 24866
FF2448-367024 x 48 x 361297
FF2472-124424 x 72 x 12629
FF2472-165724 x 72 x 16796
FF2496-085224 x 96 x 08562
FF2496-126424 x 96 x 12866
FF2496-167524 x 96 x 161155
FF2496-208424 x 96 x 201420
FF3648-083636 x 48 x 08429
FF3648-124336 x 48 x 12650
FF3648-165136 x 48 x 16874
FF3648-185236 x 48 x 18990
FF3648-205936 x 48 x 201088
FF3648-246436 x 48 x 241280
FF3648-328836 x 48 x 321644
FF3660-125836 x 60 x 12783
FF3660-166136 x 60 x 161017
FF3660-207436 x 60 x 201328
FF3672-126036 x 72 x 12999
FF3672-167636 x 72 x 161313
FF3672-208636 x 72 x 201638
FF3672-249436 x 72 x 241951
FF3672-3210736 x 72 x 322553
FF3696-128936 x 96 x 121331
FF3696-1610436 x 96 x 161735
FF3696-2011436 x 96 x 202172
FF3696-2412936 x 96 x 242597
FF3696-3215236 x 96 x 323349
FF3878-126938 x 78 x 121133
FF4272-127042 x 72 x 121166
FF4272-168142 x 72 x 161555
FF4272-209842 x 72 x 201934
FF4848-125348 x 48 x 12878
FF4848-166548 x 48 x 161182
FF4848-207548 x 48 x 201480
FF4848-248348 x 48 x 241738
FF4848-3210848 x 48 x 322231
FF4848-3611448 x 48 x 362480
FF4860-126948 x 60 x 121101
FF4860-167948 x 60 x 161497
FF4860-209148 x 60 x 201851
FF4860-2410348 x 60 x 242199
FF4860-3213048 x 60 x 322815
FF4872-127748 x 72 x 121369
FF4872-169548 x 72 x 161823
FF4872-2010848 x 72 x 202225
FF4872-2411848 x 72 x 242701
FF4872-2814148 x 72 x 282940
FF4872-3215348 x 72 x 323457
FF4872-3616648 x 72 x 363800
FF4884-128948 x 84 x 121510
FF4884-1610548 x 84 x 162056
FF4896-1210248 x 96 x 121803
FF4896-1612448 x 96 x 162396
FF4896-2014148 x 96 x 202996
FF4896-2415748 x 96 x 243578
FF4896-3218848 x 96 x 324631
FF48120-1212448 x 120 x 122118
FF48120-1614348 x 120 x 163020
FF48120-2017648 x 120 x 203692
VERSA FLOATSLBSSIZEBUOYANCY
VF448-123248 x 24 x 12409
VF448-163848 x 24 x 16546
